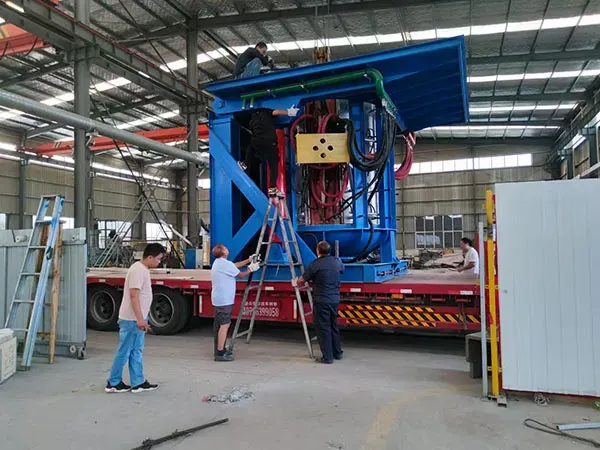

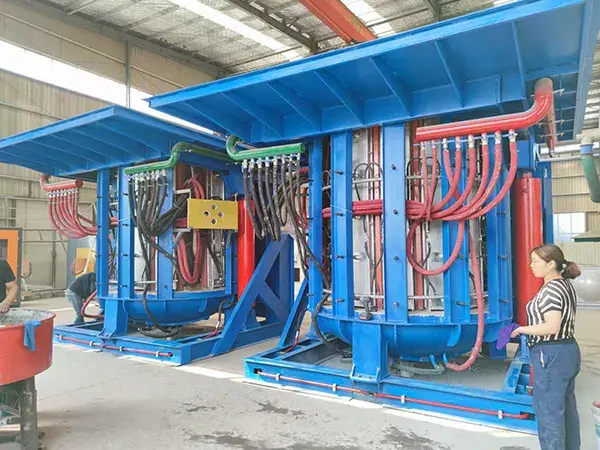

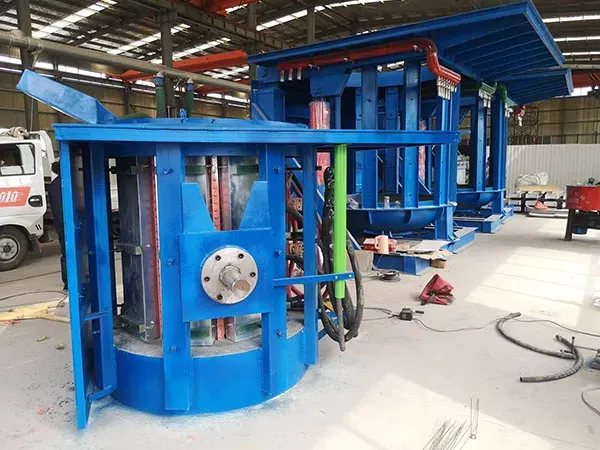

Induction Melting Furnace Details
As with all induction heating, an induction melting furnace operates by passing a high-frequency alternating current through an induction coil. This creates a rapidly oscillating magnetic field. When conductive metal (the charge) is placed within this field, eddy currents are induced in the metal. The electrical resistance of the metal to these eddy currents causes it to heat up very rapidly due to Joule heating, eventually reaching its melting point.
An induction heater utilizes the principle of electromagnetic induction to generate heat. It is widely used in various industrial applications, including metal heating, smelting, and heat treatment.
How it works: According to Faraday's law of electromagnetic induction, when a varying magnetic field passes through a conductor, it induces eddy currents in the conductor. The induction heater's power supply supplies power to the induction coil, generating a strong alternating magnetic field. This magnetic field is then transferred to the metal workpiece placed within the coil, generating eddy currents within the workpiece. Because the material's electrical resistance resists the flow of current, the eddy currents generate heat within the material, thereby heating the workpiece.
Key Components of Induction Melting Furnace
Induction Coil:
Typically made of heavy-gauge, water-cooled copper tubing.
Designed to efficiently couple the magnetic field with the charge.
Encapsulated within a refractory material to protect it from the intense heat of the molten metal.
Crucible:
This is the container that holds the metal charge and the molten metal.
It is made from refractory materials (e.g., alumina, magnesia, silica) chosen based on the type of metal being melted and the required melting temperature to prevent contamination and withstand extreme heat.
It sits inside the induction coil.
Can be a "pre-formed" crucible (a separate ceramic pot) or a "rammed" crucible (where refractory material is rammed around a former to create the lining in situ).
Furnace Body/Shell:
A robust structure, often steel, that supports the induction coil, crucible, and hydraulic tilting mechanism.
Designed to contain the heat and safely manage the melting process.
Tilting Mechanism:
Most melting furnaces are equipped with hydraulic cylinders to tilt the furnace body, allowing for controlled pouring of the molten metal into ladles, molds, or other transfer vessels.
Power Supply:
High-power, medium-frequency (typically 50 Hz to 10 kHz, but can vary) electrical supply is common for melting.
The frequency is selected based on the size of the furnace, the type of metal, and the desired stirring action. Lower frequencies often provide more vigorous stirring.
Cooling System:
Essential for cooling the induction coil, power supply components, and often the furnace lining itself. Water is the most common coolant.
Fume Extraction System:
Melting processes generate fumes and gases, especially with certain alloys or when melting scrap. A robust fume extraction hood and system are critical for air quality and safety.
Advantages for Melting
Rapid Melting: Much faster than traditional fossil fuel-fired furnaces.
Precise Temperature Control: Allows for accurate control of superheat (temperature above melting point), crucial for metallurgical quality.
Homogeneous Mix (Stirring): The electromagnetic field induces a stirring action in the molten metal, helping to homogenize the alloy and distribute alloying elements evenly. The intensity of stirring can be influenced by the power and frequency.
Clean Melting: No combustion products are introduced into the metal, reducing gas pickup and oxidation.
High Efficiency: Heat is generated directly within the charge, minimizing heat loss.
Environmental Benefits: Lower emissions compared to fossil fuel furnaces.
Flexibility: Can melt a wide variety of metals and alloys, from small batches to large tonnages.
Fast Startup and Shutdown: Can be started and stopped quickly, offering flexibility in production.
